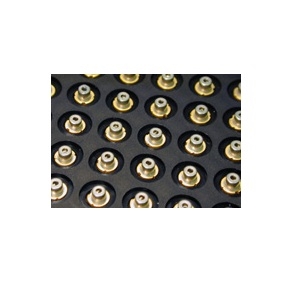

QDFBLD-1300-20TO

Laser Diode by QPhotonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPhotonics.

The QDFBLD-1300-20TO from QPhotonics is a Laser Diode with Wavelength 1306 nm, Output Power 0 to 0.0201 W, Output Power (CW) 0 to 0.0201 W, Threshold Current 13 mA, Operating Current 0.053 to 0.058 A. More details for QDFBLD-1300-20TO can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QDFBLD-1300-20TO
  • Manufacturer
    QPhotonics
  • Description
    DFB stabilized single mode laser diode, 20mW @ 1300nm, QDFBLD-1300-20-

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1306 nm
  • Output Power
    0 to 0.0201 W
  • Output Power (CW)
    0 to 0.0201 W
  • Spectral Width (FWHM)
    0.01 nm
  • Slope Efficiency
    0.5 mW/mA
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    8 to 12 Degree
  • Beam Divergence Perpendicular
    25 to 35 Degree
  • Laser Gain Medium
    InGaAs, AlGaAs or InGaAsP
  • Threshold Current :
    13 mA
  • Operating Current
    0.053 to 0.058 A
  • Operating Voltage
    1.41 V
  • Monitor Current
    0.06 mA
  • Emitting Area
    1.0 x 1.0 µm2
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    5.6 mm

Temperature

  • Operating Temperature
    25 Degree C
