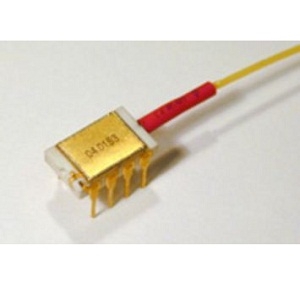

QDFBLD-1550-2SM

Laser Diode by QPhotonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPhotonics.

The QDFBLD-1550-2SM from QPhotonics is a Laser Diode with Wavelength 1550 nm, Output Power 0 to 0.002 W, Output Power (CW) 0 to 0.002 W, Threshold Current 11 mA, Operating Current 0.038 to 0.042 A. More details for QDFBLD-1550-2SM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QDFBLD-1550-2SM
  • Manufacturer
    QPhotonics
  • Description
    Wavelength stabilized single mode fiber coupled laser diode 2mW @ 1550nm, QDFBLD-1550-2SM

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1550 nm
  • Output Power
    0 to 0.002 W
  • Output Power (CW)
    0 to 0.002 W
  • Spectral Width (FWHM)
    0.01 nm
  • Threshold Current :
    11 mA
  • Operating Current
    0.038 to 0.042 A
  • Reverse Voltage(PD)
    5 to 15 V
  • Operating Voltage
    1.05 V
  • Monitor Current
    0.23 mA
  • Fiber Modes
    Single Mode
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    DIL / DIP / Through-Hole
  • Package
    Mini-DIL

Connections & Interface

  • Connector
    FC, PC

Temperature

  • Temperature Drift
    0.01 nm/Degree C
  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
