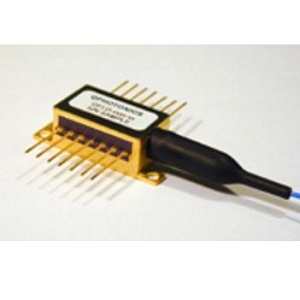

QFBGLD-1060-20

Laser Diode by QPhotonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPhotonics.

The QFBGLD-1060-20 from QPhotonics is a Laser Diode with Wavelength 1064 nm, Output Power 0 to 0.01 W, Output Power (CW) 0 to 0.01 W, Threshold Current 95 mA, Operating Current 0.22 to 0.22 A. More details for QFBGLD-1060-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QFBGLD-1060-20
  • Manufacturer
    QPhotonics
  • Description
    Wavelength stabilized single mode fiber coupled laser diode 20mW @ 1064nm, QFBGLD-1060-20

General Parameters

  • Technology
    Fiber-Bragg-Grating (FBG)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1064 nm
  • Output Power
    0 to 0.01 W
  • Output Power (CW)
    0 to 0.01 W
  • Spectral Width (FWHM)
    0.01 nm
  • Threshold Current :
    95 mA
  • Operating Current
    0.22 to 0.22 A
  • Reverse Voltage(PD)
    5 to 20 V
  • Operating Voltage
    2 V
  • Monitor Current
    0.04 mA
  • Fiber Modes
    Single Mode
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Butterfly
  • Package
    14-Pin

Connections & Interface

  • Connector
    FC

Temperature

  • Temperature Drift
    0.01 nm/Degree C
  • Operating Temperature
    25 Degree C
  • Storage Temperature
    -40 to 70 Degree C
