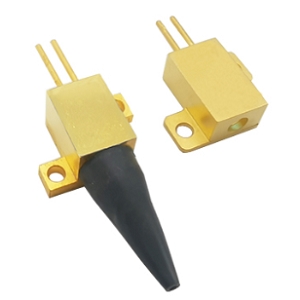

R1064±10-12WW-02HBCK

Laser Diode by RealLight
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RealLight.

The R1064±10-12WW-02HBCK from RealLight is a Laser Diode with Wavelength 1064 nm (Center), Output Power 12 W, Output Power 12 W, Output Power (CW) 12 W, Threshold Current 1.3 A. More details for R1064±10-12WW-02HBCK can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    R1064±10-12WW-02HBCK
  • Manufacturer
    RealLight
  • Description
    1064 nm, 02HBCK Diode Laser with Fiber Pigtailed Package

Applications

  • Application
    Pumping source, Material processing, Medical application, NightVision lighting

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm (Center)
  • Output Power
    12 W
  • Output Power
    12 W
  • Output Power (CW)
    12 W
  • Spectral Width (FWHM)
    <4 nm
  • Slope Efficiency
    0.8 W/A
  • Beam Divergence
    1 to 8 Degree (Parallel), 8 to 10 Degree (Perpendicular)
  • Beam Divergence Parallel
    1 to 8 Degree
  • Beam Divergence Perpendicular
    8 to 10 Degree
  • Wavelength Tolerance
    ±3 nm, ±10 nm
  • Transverse Mode
    TE
  • Threshold Current :
    1.3 A
  • Operating Current
    15 A
  • Operating Current
    15 A
  • Operating Voltage
    1.9 V
  • Laser Color
    Infrared
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    Module
  • Package
    Module
  • Relative Humidity
    75% (Operating)/90% (Storage)

Temperature

  • Temperature Drift
    0.3 nm/Degree C
  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
