R808±3-600-GS2-3X1

Laser Diode by RealLight
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RealLight.

The R808±3-600-GS2-3X1 from RealLight is a Laser Diode with Wavelength 808 nm (Center), Output Power 600 W, Output Power 600 W, Output Power (Pulsed) 600 W, Threshold Current 25 A. More details for R808±3-600-GS2-3X1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    R808±3-600-GS2-3X1
  • Manufacturer
    RealLight
  • Description

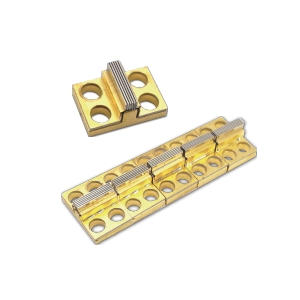

    808 nm, GS2 Series Diode laser Vertical stacks with Bar Package

Applications

  • Application
    Pumping source, Material processing, Laser lighting, Medical cosmetology, Scientific research applications

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    808 nm (Center)
  • Output Power
    600 W
  • Output Power
    600 W
  • Output Power (Pulsed)
    600 W
  • Spectral Width (FWHM)
    <5 nm
  • Pulse Duration
    250 µs
  • Configuration
    Stack, Bar
  • Beam Divergence
    35 Degree (Parallel), 10 Degree (Perpendicular)
  • Beam Divergence Parallel
    35 Degree
  • Beam Divergence Perpendicular
    10 Degree
  • Wavelength Tolerance
    ±3 nm
  • Duty Cycle
    <2%
  • Transverse Mode
    TE
  • Threshold Current :
    25 A
  • Operating Current
    200 A
  • Operating Current
    200 A
  • Operating Voltage
    6 V
  • Operating Current (Pulsed)
    200 A
  • No. of Bars
    3
  • Laser Color
    Infrared
  • Package Type
    Bar
  • Package
    Bar
  • Stack/Array
    Vertically Stack
  • Pulse Repetition Rate
    50 Hz
  • Note
    Bar Width: 10 mm

Temperature

  • Temperature Drift
    0.28 nm/Degree C
  • Operating Temperature
    -20 to 70 Degree C
  • Storage Temperature
    -40 to 80 Degree C
