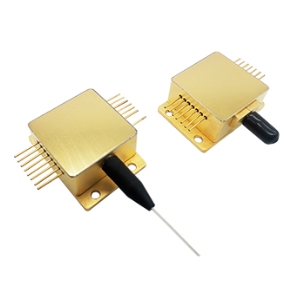

R9xx±10-20WD-14HHL-PTFS

Laser Diode by RealLight
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RealLight.

The R9xx±10-20WD-14HHL-PTFS from RealLight is a Laser Diode with Wavelength 915 nm, 940 nm, 980 nm (Center), Output Power 20 W, Output Power 20 W, Output Power (CW) 20 W, Threshold Current 1 A. More details for R9xx±10-20WD-14HHL-PTFS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    R9xx±10-20WD-14HHL-PTFS
  • Manufacturer
    RealLight
  • Description
    915 nm, 940 nm, 980 nm, 14HHL Diode Laser with HHL Pigtail, Fiber Detachable Package

Applications

  • Application
    Medical, Laser Machining, Scientific research

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    915 nm, 940 nm, 980 nm (Center)
  • Output Power
    20 W
  • Output Power
    20 W
  • Output Power (CW)
    20 W
  • Spectral Width (FWHM)
    <4 nm
  • Slope Efficiency
    0.9 W/A
  • Wavelength Tolerance
    ±3 nm, ±10 nm
  • Threshold Current :
    1 A
  • Forward Current(PD)
    <3000 µA
  • Operating Current
    23.5 A
  • Operating Current
    23.5 A
  • Operating Voltage
    2 V
  • Thermistor Resistance
    10 kOhms
  • Laser Color
    Infrared
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    HHL, Fiber Detachable
  • Package
    HHL, Fiber Detachable
  • Relative Humidity
    75% (Operating)/90% (Storage)

Physical Properties

  • Fiber core diameter
    105 µm, 200 µm
  • Fiber length
    100 cm

Connections & Interface

  • Connector
    SMA905

Temperature

  • Temperature Drift
    0.3 nm/Degree C
  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
