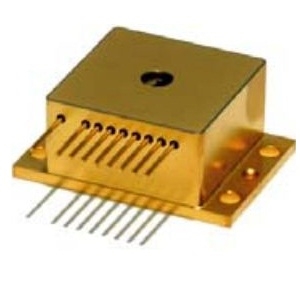

RLT1550-500HHL

Laser Diode by Roithner Lasertechnik
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLT1550-500HHL from Roithner Lasertechnik is a Laser Diode with Wavelength 1520 to 1580 nm, Output Power 0.5 W, Output Power (CW) 0.5 W, Threshold Current 700 mA, Operating Current 0 to 3.75 A. More details for RLT1550-500HHL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLT1550-500HHL
  • Manufacturer
    Roithner Lasertechnik

Applications

  • Application
    Medical Usage, Scientific and research

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1520 to 1580 nm
  • Output Power
    0.5 W
  • Output Power (CW)
    0.5 W
  • Spectral Width (FWHM)
    10 nm
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    2 Degree
  • Beam Divergence Perpendicular
    10 Degree
  • Laser Gain Medium
    InGaAsP/InP
  • Threshold Current :
    700 mA
  • Operating Current
    0 to 3.75 A
  • Operating Voltage
    2 V
  • Laser Color
    Infrared
  • Emitting Area
    100 x 1 µm²
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    200 Degree C
  • Package Type
    DIL / DIP / Through-Hole, TO-Can
  • Package
    HHL
  • Note
    Package Size: 9 mm

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -40 to 70 Degree C
