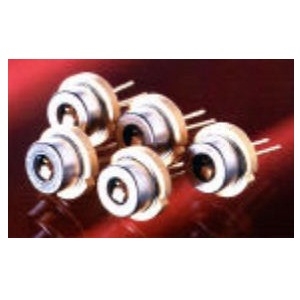

RLT6650G

Laser Diode by Roithner Lasertechnik
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLT6650G from Roithner Lasertechnik is a Laser Diode with Wavelength 655 to 665 nm, Output Power 0.05 W, Output Power (CW) 0.05 W, Threshold Current 70 to 120 mA, Operating Current 0.135 to 0.22 A. More details for RLT6650G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLT6650G
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    655 to 665 nm
  • Output Power
    0.05 W
  • Output Power (CW)
    0.05 W
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    12 Degree
  • Beam Divergence Perpendicular
    25 Degree
  • Threshold Current :
    70 to 120 mA
  • Operating Current
    0.135 to 0.22 A
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    2 to 2.2 V
  • Monitor Current
    0.35 to 1.5 mA
  • Fiber Modes
    Single Mode
  • Package Type
    DIL / DIP / Through-Hole, TO-Can
  • Package
    9 mm
  • Note
    Beam Pointing Accuracy (FWHM): ±3 Degree, Package Size: 5.6 mm

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -10 to 40 Degree C
  • Storage Temperature
    -40 to 85 Degree C
