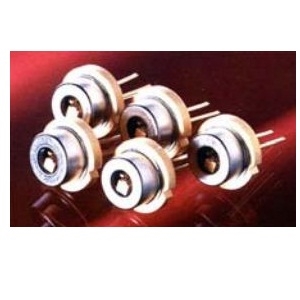

RLT940-300GS

Laser Diode by Roithner Lasertechnik
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLT940-300GS from Roithner Lasertechnik is a Laser Diode with Wavelength 935 to 945 nm, Output Power 0.3 W, Output Power (CW) 0.3 W, Threshold Current 25 to 30 mA, Operating Current 0.38 to 0.4 A. More details for RLT940-300GS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLT940-300GS
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    935 to 945 nm
  • Output Power
    0.3 W
  • Output Power (CW)
    0.3 W
  • Spectral Width (FWHM)
    0.2 to 0.3 nm
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    25 Degree
  • Beam Divergence Perpendicular
    40 Degree
  • Threshold Current :
    25 to 30 mA
  • Operating Current
    0.38 to 0.4 A
  • Reverse Voltage(PD)
    10 V
  • Operating Voltage
    1.8 to 2 V
  • Monitor Current
    100 to 1500 uA
  • Laser Color
    Infrared
  • Emitting Area
    1 x 5 µm²
  • Fiber Modes
    Single Mode
  • Package Type
    DIL / DIP / Through-Hole, TO-Can
  • Package
    9 mm (SOT-148)
  • Note
    Package Size: 9 mm

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 40 Degree C
  • Storage Temperature
    -40 to 70 Degree C
