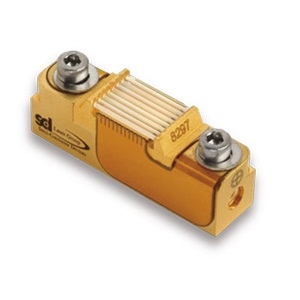

QCW-800-C

Laser Diode by SemiConductor Devices
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SemiConductor Devices.

The QCW-800-C from SemiConductor Devices is a Laser Diode with Wavelength 808 ±3 nm, Output Power 100 W, Output Power (CW) 100 W, Threshold Current 20000 mA, Operating Current 105 A. More details for QCW-800-C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QCW-800-C
  • Manufacturer
    SemiConductor Devices
  • Description
    Robust Stack with 8 collimated Laser bars at 1.2 mm pitch

Applications

  • Application
    DPSS

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 ±3 nm
  • Output Power
    100 W
  • Output Power (CW)
    100 W
  • Spectral Width (FWHM)
    4 nm
  • Slope Efficiency
    1.1 W/A
  • Configuration
    Robust Stack
  • Beam Divergence
    0.6 x 10 Degree
  • Threshold Current :
    20000 mA
  • Operating Current
    105 A
  • Operating Voltage
    18 V
  • Emitting Area
    10.4 x 9.4 mm
  • Stack/Array
    Array/Stack

Physical Properties

  • Dimension
    45 x 10.6 x 15.6 mm
