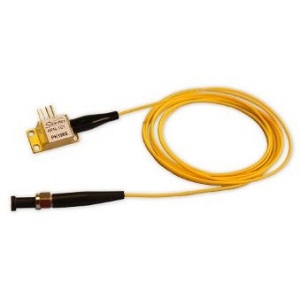

4PN-127

Laser Diode by SemiNex Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SemiNex Corporation.

The 4PN-127 from SemiNex Corporation is a Laser Diode with Wavelength 1480 nm(+/-20), Output Power 3.4 W, Output Power 3.4 w, Output Power (CW) 3.4 W, Threshold Current 0.5 A. More details for 4PN-127 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    4PN-127
  • Manufacturer
    SemiNex Corporation
  • Description
    4-PIN FIBER COUPLED LASER DIODE WITH .15 NA FIBER

Applications

  • Application
    OEM Medical, DPSS pump source, LiDAR, Military / Aeros

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1480 nm(+/-20)
  • Output Power
    3.4 W
  • Output Power
    3.4 w
  • Output Power (CW)
    3.4 W
  • Spectral Width (FWHM)
    10 nm
  • Slope Efficiency
    0.3 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    8 Degree
  • Duty Cycle
    100%
  • Emitter Width
    105 µm
  • Power Conversion Efficiency
    0.16
  • Threshold Current :
    0.5 A
  • Operating Current
    12 A
  • Operating Current
    12 A
  • Operating Voltage
    1.7 V
  • Operating Current (CW)
    12 A
  • Fiber Modes
    Multi-Mode
  • Number of Emitters
    1
  • Series Resistance
    0.07 Ohms
  • Package
    4 Pin

Physical Properties

  • Fiber core diameter
    105 µm
  • Fiber length
    1.5 Meters
  • Weight
    25 g

Connections & Interface

  • Connector
    SMA905

Temperature

  • Operating Temperature
    10 to 30 °C
  • Storage Temperature
    -20 to 80 °C
