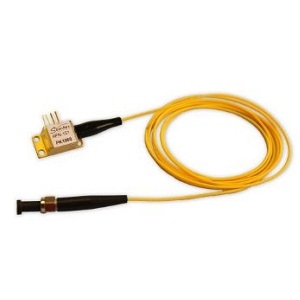

4PN-134

Laser Diode by SemiNex Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SemiNex Corporation.

The 4PN-134 from SemiNex Corporation is a Laser Diode with Wavelength 1480 nm(+/-20), Output Power 5.6 W, Output Power 5.6 W, Output Power (CW) 5.6 W, Threshold Current 0.5 A. More details for 4PN-134 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    4PN-134
  • Manufacturer
    SemiNex Corporation
  • Description
    4-PIN FIBER COUPLED LASER DIODE

Applications

  • Application
    OEM Medical, DPSS pump source, LiDAR, Free Space Communications, Military / Aerospace

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1480 nm(+/-20)
  • Output Power
    5.6 W
  • Output Power
    5.6 W
  • Output Power (CW)
    5.6 W
  • Spectral Width (FWHM)
    15 nm
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    12 Degree
  • Beam Divergence Perpendicular
    12 Degree
  • Duty Cycle
    100%
  • Emitter Width
    200 µm
  • Wavelength Temp. Coefficient
    0.21 nm/Degree C
  • Threshold Current :
    0.5 A
  • Operating Current
    17 A
  • Operating Current
    17 A
  • Operating Voltage
    1.6 V
  • Operating Current (CW)
    17 A
  • Fiber Modes
    Multi-Mode
  • Number of Emitters
    1
  • Series Resistance
    0.04 Ohms
  • Package
    4 Pin

Physical Properties

  • Fiber core diameter
    200 µm
  • Fiber length
    1.5 Meter
  • Weight
    25 g

Connections & Interface

  • Connector
    SMA905

Temperature

  • Operating Temperature
    10 to 30 °C
  • Storage Temperature
    -20 to 80 °C
