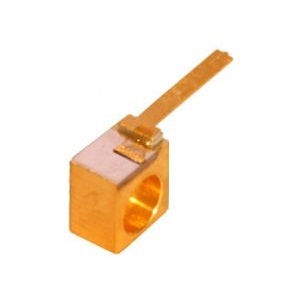

C-132-118

Laser Diode by SemiNex Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SemiNex Corporation.

The C-132-118 from SemiNex Corporation is a Laser Diode with Wavelength 1650 nm(+/-20), Output Power 3 W, Output Power 3 W, Output Power (CW) 3 W, Threshold Current 0.5 A. More details for C-132-118 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    C-132-118
  • Manufacturer
    SemiNex Corporation
  • Description
    C-MOUNT WITH SEMINEX LASER DIODE

Applications

  • Application
    OEM Medical, DPSS pump source, LiDAR, Military / Aeros

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1650 nm(+/-20)
  • Output Power
    3 W
  • Output Power
    3 W
  • Output Power (CW)
    3 W
  • Spectral Width (FWHM)
    15 nm
  • Slope Efficiency
    0.3 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    9 Degree
  • Beam Divergence Perpendicular
    0.6 Degree
  • Duty Cycle
    100%
  • Emitter Width
    95 µm
  • Wavelength Temp. Coefficient
    0.55 nm/Degree C
  • Power Conversion Efficiency
    0.13
  • Threshold Current :
    0.5 A
  • Operating Current
    14 A
  • Operating Current
    14 A
  • Operating Voltage
    1.7 V
  • Operating Current (CW)
    14 A
  • Focal Length
    Lens focal length: 274 µm
  • Fiber Modes
    Multi-Mode
  • Number of Emitters
    1
  • Series Resistance
    0.05 Ohms
  • Package Type
    C-MOUNT

Physical Properties

  • Weight
    1.3 g

Temperature

  • Operating Temperature
    10 to 30 °C
  • Storage Temperature
    -20 to 80 °C
