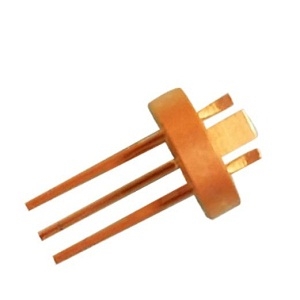

TO56m-100

Laser Diode by SemiNex Corporation

Note: Your Quotation Request will be directed to SemiNex Corporation.

The TO56m-100 from SemiNex Corporation is a Laser Diode with Wavelength 1250 nm, Output Power 8 W, Operating Voltage 7.3 V, Operating Current 20 A, Threshold Current 1000 mA. More details for TO56m-100 can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    TO56m-100
  • Manufacturer
    SemiNex Corporation
  • Description
    30W Pulsed Laser Diode for LiDAR Applications With TO56 Mini

Applications

  • Application
    OEM, LiDAR, Illumination
  • Application Industry
    Medical, Aerospace / Military

General Parameters

  • Chip Technology
    InP
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1250 nm
  • Output Power
    8 W
  • Operating Voltage
    7.3 V
  • Operating Current
    20 A
  • Emitter Width
    50 µm
  • Threshold Current
    1000 mA
  • Power Conversion Efficiency
    0.02
  • Beam Divergence Parallel
    14 Degrees
  • Beam Divergence Perpendicular
    30 Degrees
  • Laser Color
    Infrared
  • Emitting Area
    50 x 1 µm (W x H)
  • Series Resistance
    0.2 Ohms
  • Slope Efficiency
    0.2 W/A
  • Package Type
    TO-Can
  • Type
    Free Space Laser Diode
  • Tags
    TO56 Mini
  • Note
    Cavity Length : 1.5 mm

Physical Properties

  • Dimension
    5.6 x 4.3 mm (D x L)
  • Weight
    0.31 g

Temperature

  • Operating Temperature
    -40 to 60 Degree C
  • Storage Temperature
    -40 to 80 Degree C
