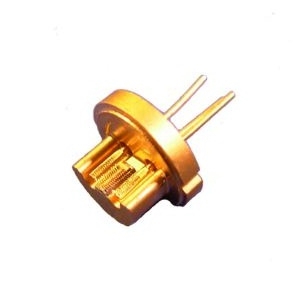

TO9-117

Laser Diode by SemiNex Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SemiNex Corporation.

The TO9-117 from SemiNex Corporation is a Laser Diode with Wavelength 1560 nm(+/-20), Output Power 9 W, Output Power 9 W, Output Power (Pulsed) 9 W, Threshold Current 0.5 A. More details for TO9-117 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TO9-117
  • Manufacturer
    SemiNex Corporation
  • Description
    TO-9 PACKAGED LASER DIODE- UNCAPPED

Applications

  • Application
    OEM Medical, Professional Medical, LiDAR, Military / Aerospace, Illumination

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1560 nm(+/-20)
  • Output Power
    9 W
  • Output Power
    9 W
  • Output Power (Pulsed)
    9 W
  • Spectral Width (FWHM)
    15 nm
  • Pulse Duration
    150 ns
  • Slope Efficiency
    0.2 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    14 Degree
  • Beam Divergence Perpendicular
    30 Degree
  • Duty Cycle
    0.1%
  • Emitter Width
    50 µm
  • Wavelength Temp. Coefficient
    0.55 nm/Degree C
  • Power Conversion Efficiency
    0.04
  • Threshold Current :
    0.5 A
  • Operating Current
    35 A
  • Operating Current
    35 A
  • Operating Voltage
    6 V
  • Operating Current (Pulsed)
    35 A
  • Fiber Modes
    Multi-Mode
  • Number of Emitters
    1
  • Series Resistance
    0.14 Ohms
  • Package Type
    TO-Can
  • Package
    TO-9

Physical Properties

  • Weight
    1.5 g

Temperature

  • Operating Temperature
    10 to 30 °C
  • Storage Temperature
    -20 to 80 °C
