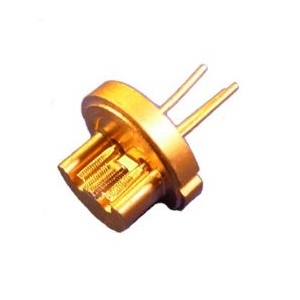

TO9-202

Laser Diode by SemiNex Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SemiNex Corporation.

The TO9-202 from SemiNex Corporation is a Laser Diode with Wavelength 1450 nm(+/-20), Output Power 25 W, Output Power 25 w, Output Power (Pulsed) 25 W, Threshold Current 3.8 A. More details for TO9-202 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TO9-202
  • Manufacturer
    SemiNex Corporation

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1450 nm(+/-20)
  • Output Power
    25 W
  • Output Power
    25 w
  • Output Power (Pulsed)
    25 W
  • Spectral Width (FWHM)
    15 nm
  • Pulse Duration
    150 ns
  • Slope Efficiency
    0.2 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    14 Degree
  • Beam Divergence Perpendicular
    28 Degree
  • Duty Cycle
    0.1 %
  • Emitter Width
    350 µm
  • Power Conversion Efficiency
    0.03
  • Threshold Current :
    3.8 A
  • Operating Current
    100 A
  • Operating Current
    100 A
  • Operating Voltage
    6.6 V
  • Operating Current (Pulsed)
    100 A
  • Fiber Modes
    Multi-Mode
  • Number of Emitters
    1
  • Series Resistance
    0.08 Ohms
  • Package Type
    TO-Can
  • Package
    TO-9 Cap 5.8mm Tall

Physical Properties

  • Weight
    2 g

Temperature

  • Operating Temperature
    10 to 30 °C
  • Storage Temperature
    -20 to 80 °C
