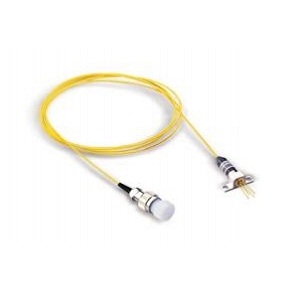

TAF305x

Laser Diode by Teradian
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teradian.

The TAF305x from Teradian is a Laser Diode with Wavelength 1280, 1310, 1340 nm, Output Power 0.5 to 3 mW, Output Power 0.5 to 3 mW, Threshold Current 7 to 15 mA, Operating Current 40 mA. More details for TAF305x can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TAF305x
  • Manufacturer
    Teradian
  • Description
    Pigtailed Analog FP-LD

Applications

  • Application
    CATV, Analog and digital modulation systems, Video link

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1280, 1310, 1340 nm
  • Output Power
    0.5 to 3 mW
  • Output Power
    0.5 to 3 mW
  • Spectral Width (FWHM)
    2 to 3 nm
  • Slope Efficiency
    0.02 to 0.25 mW/mA
  • Laser Gain Medium
    InGaAsP
  • Threshold Current :
    7 to 15 mA
  • Forward Voltage
    1.6 V
  • Forward Current(PD)
    150 mA
  • Reverse Voltage
    2 V
  • Operating Current
    40 mA
  • Operating Current
    40 mA
  • Operating Current (CW)
    40 mA
  • Capacitance
    10 pF
  • Monitor Current
    0.08 mA
  • Fiber Modes
    Single Mode
  • Photo Diode Dark Current
    10 nA
  • Package Type
    Module

Connections & Interface

  • Connector
    SMF Pigtailed, SC or FC

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
