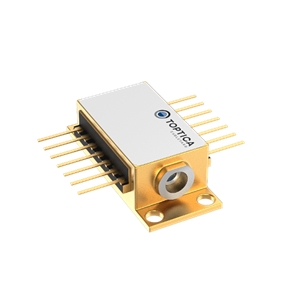

EYP-DFB-0785-00040-1500-BFY02-0002

Laser Diode by TOPTICA EAGLEYARD
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to TOPTICA EAGLEYARD.

The EYP-DFB-0785-00040-1500-BFY02-0002 from TOPTICA EAGLEYARD is a Laser Diode with Wavelength 784 nm, 785 nm, 786 nm (Center), Output Power 10 to 40 mW, Output Power 10 to 40 mW, Output Power (CW) 10 to 40 mW, Threshold Current 70 mA. More details for EYP-DFB-0785-00040-1500-BFY02-0002 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    EYP-DFB-0785-00040-1500-BFY02-0002
  • Manufacturer
    TOPTICA EAGLEYARD
  • Description
    780nm Single Frequency With 40mW Output Laser diode

Applications

  • Application
    Spectroscopy, Metrology

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    784 nm, 785 nm, 786 nm (Center)
  • Output Power
    10 to 40 mW
  • Output Power
    10 to 40 mW
  • Output Power (CW)
    10 to 40 mW
  • Spectral Width (FWHM)
    2 MHz
  • Slope Efficiency
    0.2 to 0.7 W/A
  • Polarization Extinction Ratio
    15 dB
  • Wavelength Temp. Coefficient
    0.06 nm/K
  • Threshold Current :
    70 mA
  • Reverse Voltage
    2 V
  • Operating Current
    150 mA
  • Operating Current
    150 mA
  • Operating Voltage
    5 V
  • Operating Current (CW)
    150 mA
  • Power Dissipation
    0.5 W
  • Thermistor Resistance
    10 kOhms
  • Fiber Modes
    Polarization Maintaining
  • Package Type
    Butterfly
  • Package
    14-Pin Butterfly
  • Note
    Cladding Diameter: 125 µm

Physical Properties

  • Fiber core diameter
    900 µm
  • Fiber length
    1 m
  • RoHS
    Yes

Connections & Interface

  • Connector
    FC/APC

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
