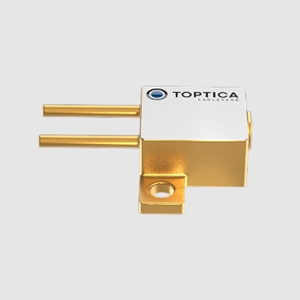

The EYP-RWL-1060-00750-4000-FLW01-0006 from TOPTICA EAGLEYARD is a Fabry-Perot Laser Diode that operates at a center wavelength of 1064 nm. It delivers a minimum output power of 650 mW and has a spectral width (FWHM) of 0.3 nm. This single mode laser diode has a transverse electric (TE) polarization and beam divergence of 5 deg (parallel) & 20 deg (perpendicular). It has a beam quality factor (M²) of 1.2 and cavity length of 4400 μm. This laser diode has a slope efficiency of 0.9 W/A and temperature coefficient of wavelength of 0.3 nm/K. It has a threshold current of 90 mA, maximum reverse voltage of 2 V, and forward current of 950 mA. This laser diode is available in a mini FlatPack package with window that measures 22.5 mm x 20.6 mm x 6.6 mm and is ideal for sensing applications.
