LD-1470-0020-DFB-1

Laser Diode by TOPTICA Photonics

Note: Your Quotation Request will be directed to TOPTICA Photonics.

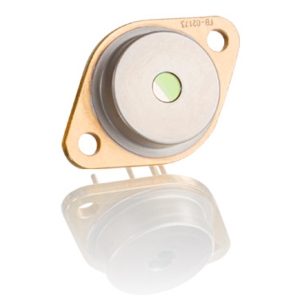

The LD-1470-0020-DFB-1 from TOPTICA Photonics is a Distributed feedback (DFB) Laser Diode that operates at a wavelength of 1470 nm. It delivers an output power of 20 mW and has a frequency-selective structure within the laser chip which restricts the laser emission to a single longitudinal mode. This laser diode's lasing wavelength is tuned by varying either the driver current or the chip temperature. It can maintain a single-frequency operation of over several hundred GHz without any mode-hops. This laser diode is available in a butterfly pigtail package with a built-in thermistor and thermoelectric cooler.

Product Specifications

View similar products

Product Details

  • Part Number
    LD-1470-0020-DFB-1
  • Manufacturer
    TOPTICA Photonics
  • Description
    1470 nm DFB Pulsed Laser Diode for Alkaline Spectroscopy

Applications

  • Application
    Alkaline Spectroscopy, Laser Cooling, Gas Detection and the generation of Tunable CW Terahertz Radiation

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1470 nm
  • Output Power
    0.02 W
  • Output Power (CW)
    0.02 W
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
