U-LD-631052A

Laser Diode by UNION OPTRONICS CORP.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to UNION OPTRONICS CORP..

The U-LD-631052A from UNION OPTRONICS CORP. is a Laser Diode with Wavelength 634 to 642 nm, Output Power 10 mw, Output Power 10 mW, Output Power (CW) 10 mW, Threshold Current 32 to 35 mA. More details for U-LD-631052A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    U-LD-631052A
  • Manufacturer
    UNION OPTRONICS CORP.
  • Description

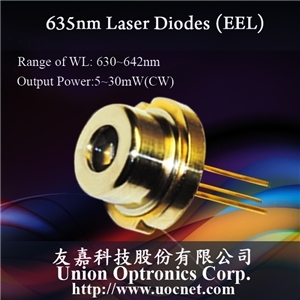

    635 nm, 10 mW Edge Emitting Laser Diode in TO-CAN Package

Applications

  • Application
    Laser level, Bar code scanner, Industrial laser markers, Measuring instruments, Projection

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    634 to 642 nm
  • Output Power
    10 mw
  • Output Power
    10 mW
  • Output Power (CW)
    10 mW
  • Slope Efficiency
    0.4 to 0.6 mW/mA
  • Beam Divergence Parallel
    6 to 12 Degree
  • Beam Divergence Perpendicular
    28 to 37 Degree
  • Threshold Current :
    32 to 35 mA
  • Reverse Voltage
    2 V
  • Operating Current
    50 to 55 mA
  • Operating Current
    50 to 55 mA
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    2.2 to 2.6 V
  • Monitor Current
    0.05 to 0.5 mA
  • Package Type
    TO-Can
  • Package
    TO-56

Temperature

  • Operating Temperature
    -10 to 50 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C
