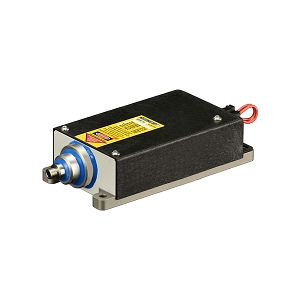

Blue-DE-44x

Laser Diode by Ushio Inc.

Note: Your Quotation Request will be directed to Ushio Inc..

The Blue-DE-44x from Ushio Opto Semiconductors is a Necsel Blue Direct Emitting Laser that operates from 440 to 449 nm. It provides an output power of 10 W and has a power conversion efficiency of up to 28%. The fiber core of the laser has a diameter of 0.400 mm and a numerical aperture of 0.22. It has a threshold current of up to 350 mA and a lifetime of 20,000 hours. The laser is available in a fiber-coupled package with SMA-905 connectors and is ideal for digital projection, remote source lighting, hazardous lighting, phosphor illumination, laser light shows, medical, and forensics applications.

Product Specifications

View similar products

Product Details

  • Part Number
    Blue-DE-44x
  • Manufacturer
    Ushio Inc.

Applications

  • Application
    Digital Projection, Remote Source Lighting, Hazardous Lighting, Phosphor Illumination, Laser Light Shows, Medical, Forensics

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    440 to 449 nm
  • Output Power
    0 to 10000 mW
  • Output Power
    10 W
  • Output Power (CW)
    0 to 10 W
  • Slope Efficiency
    8 W/A
  • Wavelength Temp. Coefficient
    0.1 nm/Degree C
  • Power Conversion Efficiency
    28%
  • Threshold Current :
    350 mA
  • Operating Current
    1.6 to 1.7 A
  • Reverse Current(LD)
    85 mA
  • Operating Voltage
    6 to 24 V
  • Laser Class
    Class 4
  • Laser Color
    Blue
  • Numerical Aperture
    0.22
  • Expected Lifetime
    20000 hours
  • Package Type
    Module with connectors, Coaxial Pigtailed
  • Note
    Optional Free Space Design

Physical Properties

  • Fiber core diameter
    0.4 mm
  • RoHS
    Yes

Connections & Interface

  • Connector
    SMA-905

Temperature

  • Operating Temperature
    30 Degree C
