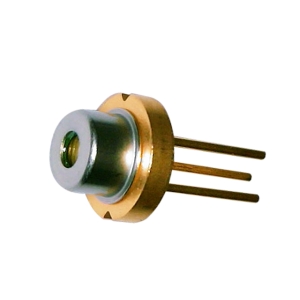

HL40173MG

Laser Diode by Ushio Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Ushio Inc..

The HL40173MG from Ushio Inc. is a Laser Diode with Wavelength 400 nm, 405 nm, 410 nm (Lasing), Output Power 600 mW, Output Power 600 mW, Output Power (CW) 600 mW, Threshold Current 70 to 180 mA. More details for HL40173MG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HL40173MG
  • Manufacturer
    Ushio Inc.
  • Description
    405nm/600mW Violet Laser Diode

Applications

  • Application
    Direct Imaging for PCB, Industry, Bio & Medical, Measurement

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    400 nm, 405 nm, 410 nm (Lasing)
  • Output Power
    600 mW
  • Output Power
    600 mW
  • Output Power (CW)
    600 mW
  • Beam Divergence
    8 to 20 Degree (Parallel), 35 to 47 Degree (Perpendicular)
  • Beam Divergence Parallel
    8 to 20 Degree
  • Beam Divergence Perpendicular
    34 to 47 Degree
  • Transverse Mode
    TE
  • Threshold Current :
    70 to 180 mA
  • Operating Current
    430 to 630 mA
  • Operating Current
    430 to 630 mA
  • Reverse Voltage(PD)
    15 V
  • Operating Voltage
    3.8 to 4.8 V
  • Operating Current (CW)
    430 to 630 mA
  • Laser Color
    Violet
  • Fiber Modes
    Multi-Mode
  • Package Type
    TO-Can
  • Package
    TO-56

Temperature

  • Operating Temperature
    0 to 30 Degree C
  • Storage Temperature
    -40 to 85 Degree C
