HL65242DG

Laser Diode by Ushio Opto Semiconductors

Note: Your Quotation Request will be directed to Ushio Opto Semiconductors.

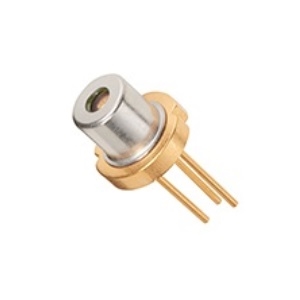

The HL65242DG from Ushio Opto Semiconductors is an AlGaInP Red Laser Diode that operates from 652 to 665 nm. It provides a CW optical power of 110 mW and pulsed optical power of 220 mW. This single transverse mode laser diode has a reverse voltage of 30 V and a threshold current of 60 mA. It is available in a DG package that measures 5.6 mm and is ideal as the light source for optical equipment, and sensor applications.

Product Specifications View similar products

Product Details

  • Part Number
    HL65242DG
  • Manufacturer
    Ushio Opto Semiconductors
  • Description
    AlGaInP Red Laser Diode from 652 to 665 nm

General Parameters

  • Configuration
    Single Emitter
  • Operation Mode
    CW
  • Wavelength
    660 nm
  • Output Power
    110 to 220 W
  • Operating Voltage
    2.45 to 3.0 V
  • Operating Current
    145 to 225 mA
  • Reverse Voltage(PD)
    30 V
  • Threshold Current
    60 to 90 mA
  • Beam Divergence Parallel
    4 to 10 Degree
  • Beam Divergence Perpendicular
    11 to 19 Degree
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    5.6 mm 3-pin CAN
  • Type
    Free Space Laser Diode
  • Output Power (CW)
    110 mW
  • Output Power (Pulsed)
    220 mW

Temperature

  • Operating Temperature
    -10 to 90 Degree C
  • Storage Temperature
    -40 to 100 Degree C
