CAC940K004

Laser Diode by Vertilite

Note: Your Quotation Request will be directed to Vertilite.

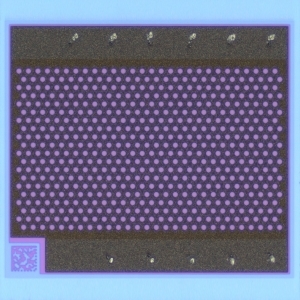

The CAC940K004 from Vertilite is a Vertical-Cavity Surface-Emitting Laser (VCSEL) Diode that operates at a wavelength of 940 nm. It delivers an optical output power of 8 W and has a spectral width (RMS) of 1 nm. This laser diode has a power conversion efficiency of 48% and slope efficiency of 2.7 W/A. It has a full beam divergence of 22 deg and differential resistance of 0.18 Ohms. This laser diode requires a threshold current of 0.5 A, DC supply voltage of 4.8 V, and consumes a current of 3.5 A. It is available in an Au submount package that measures 955 ± 15 (L) µm x 855 ± 15 (W) µm x 100 ± 10 (H) µm and is ideal for 3D sensing applications.

Product Specifications

View similar products

Product Details

  • Part Number
    CAC940K004
  • Manufacturer
    Vertilite
  • Description
    940 nm Vertical-Cavity Surface-Emitting Laser Diode for 3D Sensing Applications

Applications

  • Application
    3D Sensing

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Operation Mode
    Pulsed Laser
  • Wavelength
    934 nm, 940 nm, 946 nm
  • Output Power
    7.5 to 8 W
  • Output Power
    7.5 to 8 W
  • Spectral Width (FWHM)
    1 to 2.5 nm
  • Operating Voltage
    4.3 to 5.3 V
  • Differential Resistance
    0.18 Ohms
  • Operating Current
    3.5 A
  • Operating Current
    3.5 A
  • Emitter Width
    855±15 µm (Front) 865±20 µm (Rear)
  • Threshold Current :
    0.5 to 0.8 A
  • Power Conversion Efficiency
    43 to 48%
  • Beam Divergence
    18 to 26 Degree
  • Laser Color
    Infrared
  • Emitting Area
    30 x 52 µm (Pitch)
  • Emitting Size/Emitter Chip
    955 µm (Front), 965 µm (Rear) x 855 µm (Front) 865 µm (Rear) x 100 µm (L x W x H)
  • Number of Emitters
    560
  • Slope Efficiency
    2.5 to 2.7 W/A
  • Package Type
    Sub-Mount
  • Package
    Chip on Sub-Mount
  • Type
    Free Space Laser Diode
  • Wavelength Temp. Coefficient
    0.07 nm / Degree C

Temperature

  • Operating Temperature
    -40 to 105 Degree C
  • Storage Temperature
    -40 to 125 Degree C
