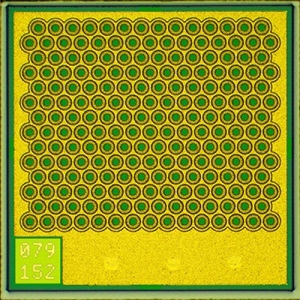

CAS850F001

Laser Diode by Vertilite
Request Quote

Note: Your Quotation Request will be directed to Vertilite.

The CAS850F001 from Vertilite is a Laser Diode with Wavelength 840 nm, 850 nm, 860 nm, Output Power 0.8 to 1.2 W, Output Power 0.8 to 1.2 W, Threshold Current 0.35 to 0.6 A, Operating Current 1.4 A. More details for CAS850F001 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CAS850F001
  • Manufacturer
    Vertilite

Applications

  • Application
    3D Sensing

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    840 nm, 850 nm, 860 nm
  • Output Power
    0.8 to 1.2 W
  • Output Power
    0.8 to 1.2 W
  • Spectral Width (FWHM)
    1 to 2.5 nm
  • Slope Efficiency
    0.8 to 1.1 W/A
  • Beam Divergence
    16 to 24 Degree
  • Emitter Width
    735±15 µm
  • Wavelength Temp. Coefficient
    0.07 nm / Degree C
  • Power Conversion Efficiency
    35 to 40%
  • Threshold Current :
    0.35 to 0.6 A
  • Operating Current
    1.4 A
  • Operating Current
    1.4 A
  • Operating Voltage
    2.1 to 2.5 V
  • Differential Resistance
    0.35 to 0.6 Ohms
  • Laser Color
    Infrared
  • Emitting Area
    42 µm (Pitch)
  • Emitting Size/Emitter Chip
    735 x 735 x 100 µm (L x W x H)
  • Number of Emitters
    203
  • Package Type
    Sub-Mount
  • Package
    Chip on Sub-Mount

Temperature

  • Operating Temperature
    0 to 85 Degree C
  • Storage Temperature
    -40 to 105 Degree C
