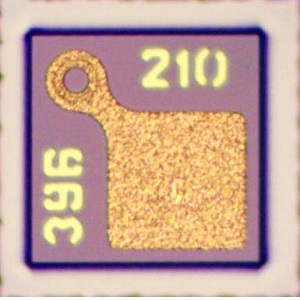

CAS940A002

Laser Diode by Vertilite
Request Quote

Note: Your Quotation Request will be directed to Vertilite.

The CAS940A002 from Vertilite is a Laser Diode with Wavelength 930 nm, 940 nm, 950 nm, Output Power 5 to 6 mW, Output Power 5 to 6 mW, Threshold Current 1 to 2 mA, Operating Current 7 mA. More details for CAS940A002 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CAS940A002
  • Manufacturer
    Vertilite

Applications

  • Application
    P-sensor

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    930 nm, 940 nm, 950 nm
  • Output Power
    5 to 6 mW
  • Output Power
    5 to 6 mW
  • Spectral Width (FWHM)
    1 to 2.5 nm
  • Slope Efficiency
    0.8 to 1 W/A
  • Beam Divergence
    16 to 24 Degree
  • Emitter Width
    173±15 µm
  • Wavelength Temp. Coefficient
    0.07 nm / Degree C
  • Power Conversion Efficiency
    38 to 41%
  • Threshold Current :
    1 to 2 mA
  • Operating Current
    7 mA
  • Operating Current
    7 mA
  • Operating Voltage
    1.8 to 2.4 V
  • Differential Resistance
    60 to 80 Ohms
  • Laser Color
    Infrared
  • Emitting Size/Emitter Chip
    173 x 173 x 100 µm (L x W x H)
  • Number of Emitters
    1
  • Package Type
    Sub-Mount
  • Package
    Chip on Sub-Mount

Temperature

  • Operating Temperature
    0 to 85 Degree C
  • Storage Temperature
    -40 to 105 Degree C
Click to view more product details on manufacturer's website
