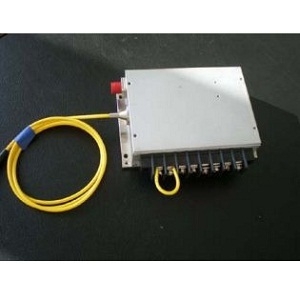

WSLB-650-002-H

Laser Diode by Wavespectrum Laser Inc.
Request Quote

Note: Your Quotation Request will be directed to Wavespectrum Laser Inc..

The WSLB-650-002-H from Wavespectrum Laser Inc. is a Laser Diode with Wavelength 640 to 660 nm, Output Power 2 W, Output Power (CW) 2 W, Threshold Current 1000 mA, Operating Current 1.8 A. More details for WSLB-650-002-H can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    WSLB-650-002-H
  • Manufacturer
    Wavespectrum Laser Inc.
  • Description
    650nm~660nm Fiber Bundled Diode Laser Modules

Applications

  • Application
    Medical laser treatment
  • Application Industry
    Medical

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    640 to 660 nm
  • Output Power
    2 W
  • Output Power (CW)
    2 W
  • Spectral Width (FWHM)
    2.5 nm
  • Slope Efficiency
    0.9 mW/mA
  • Threshold Current :
    1000 mA
  • Operating Current
    1.8 A
  • Operating Voltage
    7 V
  • Lead Soldering Temperature
    260 Degree C
  • Package
    2-Pin, 4-Pin

Temperature

  • Temperature Drift
    0.2 nm/Degree C
  • Operating Temperature
    -10 to 25 Degree C
  • Storage Temperature
    -40 to 85 Degree C
Click to view more product details on manufacturer's website
