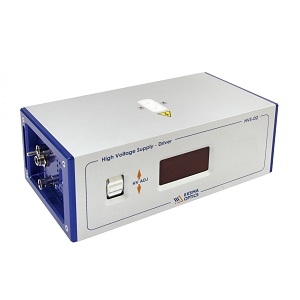

HVS-D2-2.5-9.8

Pockels Cell Driver by EKSMA Optics
46 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EKSMA Optics.

The HVS-D2-2.5-9.8 from EKSMA Optics is a Pockels Cell Driver with Output Voltage Amplitude 5 to 5 kV, Fall Time 10.5 ns, Trigger Voltage 3.5 to 5 V, Repetition Rate 2.5 kHz, Pulse Width 35 to 2000 ns. More details for HVS-D2-2.5-9.8 can be seen below.

Product Specifications

Product Details

  • Part Number
    HVS-D2-2.5-9.8
  • Manufacturer
    EKSMA Optics
  • Description
    5 to 5 kV 2.5 kHz 35 to 2000 ns Bipolar Pockel cell driver

Electrical Specifications

  • Output Voltage Amplitude
    5 to 5 kV
  • Fall Time
    10.5 ns
  • HV Operation Voltage
    9.8 kV
  • Trigger Voltage
    3.5 to 5 V
  • HV Power Consumption
    5 W
  • HV Power Supply
    90 to 264 VAC, 47 to 63 Hz (Mains voltage)
  • TTL Signal
    External

General Parameters

  • Repetition Rate
    2.5 kHz
  • Pulse Width
    35 to 2000 ns
  • Rise Time
    <5 to 12 ns
  • Output Type
    Bi-Polar
  • Design Type
    Bench-top
  • Propagation Delay
    30 ns
  • Pulse Delay
    30 ns
  • Technology
    Q-switching, DPSS Laser
  • Note
    External Triggering Pulse Rise: <5 ns

Physical Properties

  • Dimensions
    80 x 120 x 225 mm (W x L x H)
