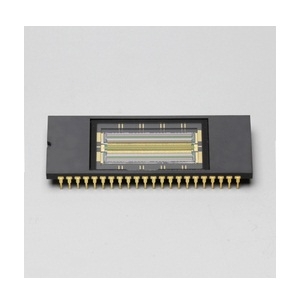

G10768-1024DB

SWIR Sensor by Hamamatsu Photonics
47 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The G10768-1024DB from Hamamatsu Photonics is a SWIR Sensor with Dark Current -5 to 5 pA, Line Rate 39000 lines/s, Clock Frequency 0.5 to 6.67 MHz, Clock Pulse Width 80 to 100 ns, Data Rate 6.67 MHz. More details for G10768-1024DB can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    G10768-1024DB
  • Manufacturer
    Hamamatsu Photonics
  • Description
    Near infrared image sensor (0.9 to 1.7 µm) with 1024 pixels and high-speed line rate

General Parameters

  • SWIR Type
    InGaAs SWIR Sensor
  • Sensor Technology
    Indium Gallium Arsenide (InGaAs)
  • Total Number of Pixels
    1024 pixels
  • Sensor Type
    Line Scan Sensor
  • Number of Effective Pixels
    1024 pixels
  • Dark Current
    -5 to 5 pA
  • Pixel Size(H x V)
    25 x 25 µm
  • Pixel Pitch
    25 µm
  • Cooling
    Non-Cooled
  • Image Size
    25.6 x 0.025 mm
  • Line Rate
    39000 lines/s
  • Package Type
    DIP
  • Clock Pulse rise/fall times
    20 to 30 ns
  • Clock Pulse Voltage
    0 to 5.3 V
  • Conversion Efficiency
    14 to 1400 nV/e-
  • Defective Pixels
    0.01
  • Peak Sensitivity Wavelength
    1.55 µm
  • Readout Noise
    2 to 6 mV rms (RMS noise voltage)
  • Reset pulse rise/fall times
    20 to 30 ns
  • Reset Pulse Width
    8 to 134 clocks
  • Saturation Charge
    0.25 pC
  • Saturation Output Voltage
    2.5 V
  • Video Output Voltage
    1 to 4 V
  • Clock Frequency
    0.5 to 6.67 MHz
  • Clock Pulse Width
    80 to 100 ns
  • Data Rate
    6.67 MHz
  • Spectral Response Range
    0.9 to 1.7 µm
  • Supply Voltage
    4.7 to 5.3 V
  • Supply Current
    100 to 150 mA
  • Note
    DIP

Applications

  • Application
    Foreign object screening, OCT (optical coherence tomography), Near infrared spectroscopy

Environmental Conditions

  • Operating Temperature
    -10 to 70 Degree C
  • Storage Temperature
    -20 to 70 Degree C
