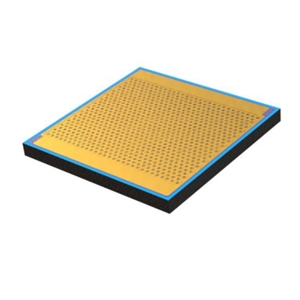

OLI5050V.A1-940-A

Laser Diode by ams OSRAM
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ams OSRAM.

The OLI5050V.A1-940-A from ams OSRAM is a Laser Diode with Wavelength 930 nm, 940 nm, 950 nm, Output Power 3.6 to 4 W, Output Power 3.6 to 4 W, Threshold Current 0.4 to 1.4 A, Operating Current 6 to 16 A. More details for OLI5050V.A1-940-A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OLI5050V.A1-940-A
  • Manufacturer
    ams OSRAM
  • Description
    930 to 950 nm VCSEL Laser Diodes with 3.6 to 4 W Power

Applications

  • Application
    Access control and security, Eye, face and hand tracking, Medical imaging
  • Application Industry
    Industrial, Mobile and Wearables, Medical and Health

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    930 nm, 940 nm, 950 nm
  • Output Power
    3.6 to 4 W
  • Output Power
    3.6 to 4 W
  • Spectral Width (FWHM)
    2 nm
  • Pulse Duration
    100 µs
  • Slope Efficiency
    1 W/A
  • Chip Technology
    GaAs
  • Duty Cycle
    0.01
  • Wavelength Temp. Coefficient
    0.066 nm /K
  • Power Conversion Efficiency
    0.39
  • Threshold Current :
    0.4 to 1.4 A
  • Forward Voltage
    1.5 to 2.6 V
  • Operating Current
    6 to 16 A
  • Operating Current
    6 to 16 A
  • Operating Voltage
    1.5 to 2.6 V
  • Laser Color
    Infrared
  • Fiber Modes
    Multi-Mode
  • Package Type
    Chip, Die
  • Package
    Chip, Die

Temperature

  • Operating Temperature
    -40 to 110 Degree C
  • Storage Temperature
    -40 to 110 Degree C
