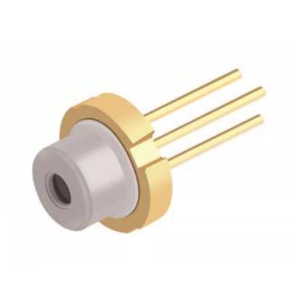

PLT5 518FB_P

Laser Diode by ams OSRAM
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ams OSRAM.

The PLT5 518FB_P from ams OSRAM is a Laser Diode with Wavelength 510 nm, 520 nm, 530 nm (Peak), Output Power 30 mW, Output Power 30 mW, Threshold Current 30 to 45 mA, Operating Current 80 to 100 mA. More details for PLT5 518FB_P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PLT5 518FB_P
  • Manufacturer
    ams OSRAM
  • Description
    Green Laser Diode in TO56 Package

Applications

  • Application
    Appliances & Tools, Entertainment, Functional Illumination, Outdoor & Industrial Lighting, Projection

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    510 nm, 520 nm, 530 nm (Peak)
  • Output Power
    30 mW
  • Output Power
    30 mW
  • Spectral Width (FWHM)
    1 nm
  • Beam Divergence
    6 to 10 Degree (Parallel), 19 to 25 Degree (Perpendicular)
  • Beam Divergence Parallel
    6 to 10 Degree
  • Beam Divergence Perpendicular
    19 to 25 Degree
  • Polarization Extinction Ratio
    100:1
  • Transverse Mode
    TE
  • Threshold Current :
    30 to 45 mA
  • Forward Voltage
    5.6 to 6.5 V
  • Reverse Voltage
    2 V
  • Operating Current
    80 to 100 mA
  • Operating Current
    80 to 100 mA
  • Operating Voltage
    5.6 to 6.5 V
  • Peak Power
    35 mW
  • Monitor Current
    55 µA
  • Laser Color
    Green
  • Modulation
    100 MHz
  • Fiber Modes
    Single Mode
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can
  • Package
    TO-56

Physical Properties

  • Weight
    313 mg
  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C
