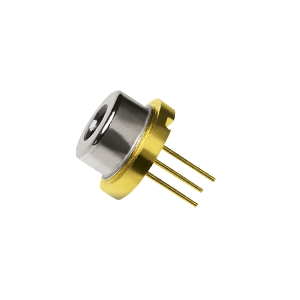

ADL-63104GL

Laser Diode by Arima Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Arima Lasers.

The ADL-63104GL from Arima Lasers is a Laser Diode with Wavelength 630 nm, 637 nm, 640 nm (Peak), Output Power 10 mW, Output Power 10 mW, Output Power (CW) 10 mW, Threshold Current 35 to 40 mA. More details for ADL-63104GL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ADL-63104GL
  • Manufacturer
    Arima Lasers
  • Description
    635nm 10mW Laser Diode with TO-Can package

Applications

  • Application
    Industrial laser markers, Measuring instruments, High visibility LD display

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    630 nm, 637 nm, 640 nm (Peak)
  • Output Power
    10 mW
  • Output Power
    10 mW
  • Output Power (CW)
    10 mW
  • Slope Efficiency
    0.25 to 0.85 mW/mA (Differential)
  • Beam Divergence
    6 to 11 Degree (Parallel), 30 to 38 Degree (Perpendicular)
  • Beam Divergence Parallel
    6 to 11 Degree
  • Beam Divergence Perpendicular
    30 to 38 Degree
  • Threshold Current :
    35 to 40 mA
  • Forward Current(PD)
    10 mA
  • Reverse Voltage
    2 V
  • Operating Current
    55 to 65 mA
  • Operating Current
    55 to 65 mA
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    2 to 2.5 V
  • Operating Current (CW)
    55 to 65 mA
  • Monitor Current
    0.05 to 0.5 mA
  • Package Type
    TO-Can
  • Package
    TO-Can

Temperature

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
