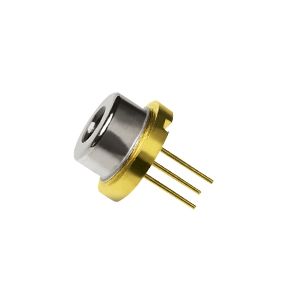

ADL-65074SW

Laser Diode by Arima Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Arima Lasers.

The ADL-65074SW from Arima Lasers is a Laser Diode with Wavelength 645 nm, 650 nm, 660 nm, Output Power 7 mW, Output Power 7 mW, Output Power (CW) 7 mW, Operating Current 26 to 35 mA. More details for ADL-65074SW can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ADL-65074SW
  • Manufacturer
    Arima Lasers
  • Description
    650nm 7mW Laser Diode, 85°C High Reliable Operation

Applications

  • Application
    Laser level, illumination, meter, scanner, detector, point light, sweeper, game lighting, special wavelength light source
  • Application Industry
    Industry, Consumer, Health

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    645 nm, 650 nm, 660 nm
  • Output Power
    7 mW
  • Output Power
    7 mW
  • Output Power (CW)
    7 mW
  • Beam Divergence
    6 to 12 Degree (Parallel) 25 to 32 Degree (Perpendicular)
  • Beam Divergence Parallel
    6 to 12 Degree
  • Beam Divergence Perpendicular
    25 to 32 Degree
  • Duty Cycle
    0.5
  • Operating Current
    26 to 35 mA
  • Operating Current
    26 to 35 mA
  • Operating Voltage
    2.5 to 6 V
  • Operating Current (CW)
    26 to 35 mA
  • Capacitance
    10 uF
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    TO-Can (3.3 mm)

Temperature

  • Operating Temperature
    -10 to 85 Degree C
  • Storage Temperature
    -40 to 90 Degree C
