ADL-65103TL

Laser Diode by Arima Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Arima Lasers.

The ADL-65103TL from Arima Lasers is a Laser Diode with Wavelength 645 nm, 650 nm, 660 nm (Peak), Output Power 10 mW, Output Power 10 mW, Output Power (CW) 10 mW, Threshold Current 20 to 25 mA. More details for ADL-65103TL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ADL-65103TL
  • Manufacturer
    Arima Lasers
  • Description

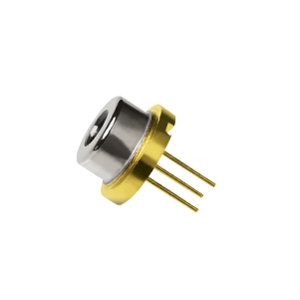

    650nm 10mW Laser Diode with TO-Can package

Applications

  • Application
    Laser Levelers, Industrial laser makers/ measuring instruments, Bar code readers

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    645 nm, 650 nm, 660 nm (Peak)
  • Output Power
    10 mW
  • Output Power
    10 mW
  • Output Power (CW)
    10 mW
  • Slope Efficiency
    0.7 to 1.2 mW/mA (Differential)
  • Beam Divergence
    6 to 12 Degree (Parallel) 25 to 32 Degree (Perpendicular)
  • Beam Divergence Parallel
    6 to 12 Degree
  • Beam Divergence Perpendicular
    25 to 32 Degree
  • Threshold Current :
    20 to 25 mA
  • Forward Current(PD)
    10 mA
  • Reverse Voltage
    2 V
  • Operating Current
    31 to 40 mA
  • Operating Current
    31 to 40 mA
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    2.2 to 2.5 V
  • Operating Current (CW)
    31 to 40 mA
  • Monitor Current
    0.1 to 0.4 mA
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    TO-Can

Temperature

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
