ADL-66505TL

Laser Diode by Arima Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Arima Lasers.

The ADL-66505TL from Arima Lasers is a Laser Diode with Wavelength 653 nm, 660 nm, 667 nm (Peak), Output Power 50 mW, Output Power 50 mW, Output Power (CW) 50 mW, Threshold Current 45 to 60 mA. More details for ADL-66505TL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ADL-66505TL
  • Manufacturer
    Arima Lasers
  • Description

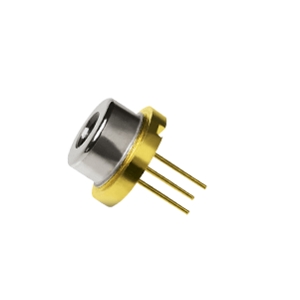

    660nm 50mW Laser Diode with TO-Can package

Applications

  • Application
    High power laser modules, Industrial laser markers/ measuring instruments, Medical applications

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    653 nm, 660 nm, 667 nm (Peak)
  • Output Power
    50 mW
  • Output Power
    50 mW
  • Output Power (CW)
    50 mW
  • Slope Efficiency
    0.7 to 1.4 mW/mA (Differential)
  • Beam Divergence
    6 to 13 Degree (Parallel) 13 to 22 Degree (Perpendicular)
  • Beam Divergence Parallel
    6 to 13 Degree
  • Beam Divergence Perpendicular
    13 to 22 Degree
  • Threshold Current :
    45 to 60 mA
  • Forward Current(PD)
    10 mA
  • Reverse Voltage
    2 V
  • Operating Current
    95 to 120 mA
  • Operating Current
    95 to 120 mA
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    2 to 3 V
  • Operating Current (CW)
    95 to 120 mA
  • Monitor Current
    0.05 to 0.5 mA
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    TO-Can

Temperature

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C
