ADL-83Y52TL

Laser Diode by Arima Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Arima Lasers.

The ADL-83Y52TL from Arima Lasers is a Laser Diode with Wavelength 820 nm, 830 nm, 840 nm (Peak), Output Power 250 mW, Output Power 250 mW, Output Power (CW) 250 mW, Threshold Current 65 to 90 mA. More details for ADL-83Y52TL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ADL-83Y52TL
  • Manufacturer
    Arima Lasers
  • Description

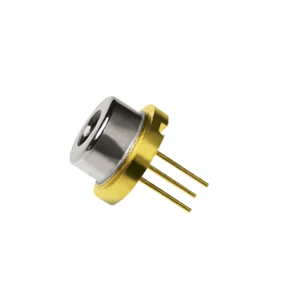

    830nm 250mW AlGaAs Infrared laser diode with TO-Can Package

Applications

  • Application
    Light source for sensing device, LIDAR (light detection & ranging), 3D Sensing with Laser, Illumination/ Medical application/ Imaging

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    820 nm, 830 nm, 840 nm (Peak)
  • Output Power
    250 mW
  • Output Power
    250 mW
  • Output Power (CW)
    250 mW
  • Slope Efficiency
    0.8 to 1 mW/mA (Differential)
  • Beam Divergence
    5 to 12 Degree (Parallel) 10 to 20 Degree (Perpendicular)
  • Beam Divergence Parallel
    5 to 12 Degree
  • Beam Divergence Perpendicular
    10 to 20 Degree
  • Laser Gain Medium
    AlGaAs
  • Threshold Current :
    65 to 90 mA
  • Reverse Voltage
    2 V
  • Operating Current
    300 to 360 mA
  • Operating Current
    300 to 360 mA
  • Operating Voltage
    1.9 to 2.4 V
  • Operating Current (CW)
    300 to 360 mA
  • Monitor Current
    0.5 to 2.2 mA
  • Laser Color
    Infrared
  • Package Type
    TO-Can
  • Package
    TO-Can (5.6 mm)

Temperature

  • Operating Temperature
    -10 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
