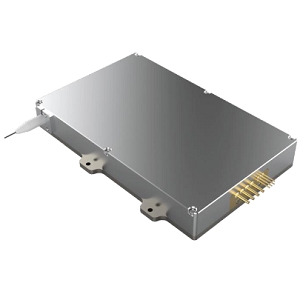

K445HR7FN-50.00W

Laser Diode by BWT BEIJING
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BWT BEIJING.

The K445HR7FN-50.00W from BWT BEIJING is a Laser Diode with Wavelength 445 nm (Center), Output Power 50 W, Output Power 50 W, Output Power (CW) 50 W, Threshold Current 0.35 A. More details for K445HR7FN-50.00W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    K445HR7FN-50.00W
  • Manufacturer
    BWT BEIJING
  • Description
    445nm, Fiber Coupled Blue Laser

Applications

  • Application
    Material Processing, 3D Printing, Scientific Research

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    445 nm (Center)
  • Output Power
    50 W
  • Output Power
    50 W
  • Output Power (CW)
    50 W
  • Spectral Width (FWHM)
    6 nm
  • Slope Efficiency
    11.5 W/A
  • Wavelength Tolerance
    ±20 nm
  • Wavelength Temp. Coefficient
    0.1 nm/Degree C
  • Threshold Current :
    0.35 A
  • Operating Current
    2.5 to 3.5 A
  • Operating Current
    2.5 to 3.5 A
  • Operating Voltage
    35 to 40 V
  • Thermistor Resistance
    10 kOhms
  • Numerical Aperture
    0.15
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Module with connectors
  • Package
    Module with connectors
  • Relative Humidity
    15 to 75% RH

Physical Properties

  • Fiber core diameter
    113 µm

Connections & Interface

  • Connector
    SMA905

Temperature

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
