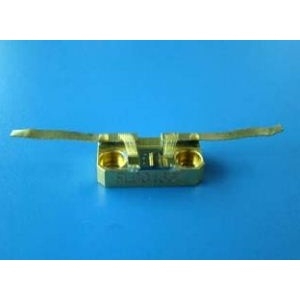

MLD-1470-1000

Laser Diode by CNI Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

The MLD-1470-1000 from CNI Laser is a Laser Diode with Wavelength 1470 nm, Output Power 1000 mW, Output Power 1000 mW, Output Power (CW) 1000 mW, Threshold Current 400 mA. More details for MLD-1470-1000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MLD-1470-1000
  • Manufacturer
    CNI Laser

General Parameters

  • Technology
    Quantum Well
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1470 nm
  • Output Power
    1000 mW
  • Output Power
    1000 mW
  • Output Power (CW)
    1000 mW
  • Slope Efficiency
    0.35 W/A
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    32 Degree
  • Wavelength Tolerance
    ±20 nm
  • Threshold Current :
    400 mA
  • Reverse Voltage
    2 V
  • Operating Current
    3000 mA
  • Operating Voltage
    1.5 V
  • Fiber Modes
    Multi-Mode
  • Package Type
    CN-Mount
  • Package
    CN-Mount

Temperature

  • Operating Temperature
    15 to 20 Degree C
  • Storage Temperature
    0 to 55 Degree C
