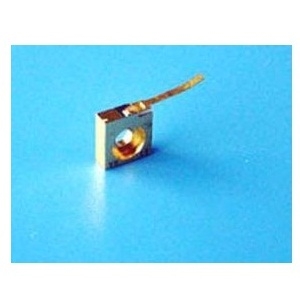

MLD-940-1500

Laser Diode by CNI Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

The MLD-940-1500 from CNI Laser is a Laser Diode with Wavelength 940 nm, Output Power 1500 mW, Output Power 1500 mW, Output Power (CW) 1500 mW, Threshold Current 400 mA. More details for MLD-940-1500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MLD-940-1500
  • Manufacturer
    CNI Laser

General Parameters

  • Technology
    Quantum Well
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    940 nm
  • Output Power
    1500 mW
  • Output Power
    1500 mW
  • Output Power (CW)
    1500 mW
  • Spectral Width (FWHM)
    3 nm
  • Slope Efficiency
    1 W/A
  • Beam Divergence Parallel
    9 Degree
  • Beam Divergence Perpendicular
    32 Degree
  • Wavelength Tolerance
    ±5 nm
  • Threshold Current :
    400 mA
  • Reverse Voltage
    2 V
  • Operating Current
    2100 mA
  • Operating Voltage
    1.9 V
  • Fiber Modes
    Multi-Mode
  • Package Type
    C-Mount
  • Package
    C-Mount

Temperature

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
