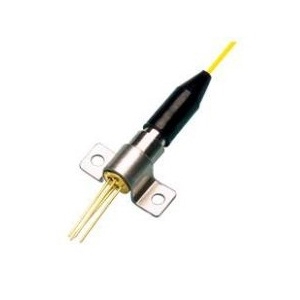

MLDP-635-5-MM

Laser Diode by CNI Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

The MLDP-635-5-MM from CNI Laser is a Laser Diode with Wavelength 635 nm, Output Power 5 mW, Output Power 5 mW, Output Power (CW) 5 mW, Threshold Current 35 mA. More details for MLDP-635-5-MM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MLDP-635-5-MM
  • Manufacturer
    CNI Laser

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Output Power
    5 mW
  • Output Power
    5 mW
  • Output Power (CW)
    5 mW
  • Wavelength Tolerance
    ±5 nm
  • Threshold Current :
    35 mA
  • Reverse Voltage
    2 V
  • Operating Current
    65 mA
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    2.4 V
  • Monitor Current
    0.2 mA
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can Pigtailed

Physical Properties

  • Fiber core diameter
    105 µm
  • Fiber length
    80 cm

Connections & Interface

  • Connector
    FC, SC, SMA-905

Temperature

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
