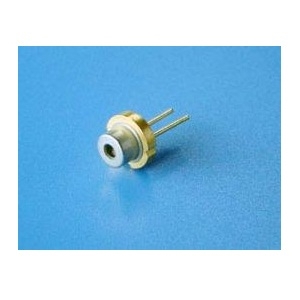

SLD-1550-20

Laser Diode by CNI Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

The SLD-1550-20 from CNI Laser is a Laser Diode with Wavelength 1550 nm, Output Power 20 mW, Output Power 20 mW, Output Power (CW) 20 mW, Threshold Current 10 mA. More details for SLD-1550-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SLD-1550-20
  • Manufacturer
    CNI Laser

General Parameters

  • Technology
    Quantum Well
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1550 nm
  • Output Power
    20 mW
  • Output Power
    20 mW
  • Output Power (CW)
    20 mW
  • Spectral Width (FWHM)
    0.3 nm
  • Slope Efficiency
    0.8 W/A
  • Beam Divergence Parallel
    9 Degree
  • Beam Divergence Perpendicular
    20 Degree
  • Wavelength Tolerance
    ±5 nm
  • Threshold Current :
    10 mA
  • Reverse Voltage
    2 V
  • Operating Current
    70 mA
  • Reverse Voltage(PD)
    20 V
  • Operating Voltage
    1.5 V
  • Fiber Modes
    Single Mode, Multi-Mode
  • Package Type
    TO-Can
  • Package
    TO-18

Temperature

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
