SLDP-980-10-SM

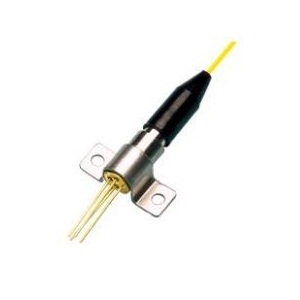

Laser Diode by CNI Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

The SLDP-980-10-SM from CNI Laser is a Laser Diode with Wavelength 980 nm, Output Power 10 mW, Output Power 10 mW, Output Power (CW) 10 mW, Threshold Current 15 mA. More details for SLDP-980-10-SM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SLDP-980-10-SM
  • Manufacturer
    CNI Laser

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    980 nm
  • Output Power
    10 mW
  • Output Power
    10 mW
  • Output Power (CW)
    10 mW
  • Wavelength Tolerance
    ±5 nm
  • Threshold Current :
    15 mA
  • Reverse Voltage
    2 V
  • Operating Current
    80 mA
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    1.6 V
  • Monitor Current
    0.5 mA
  • Fiber Modes
    Single Mode
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    TO-Can Pigtailed

Physical Properties

  • Fiber core diameter
    6 µm
  • Fiber length
    80 cm

Connections & Interface

  • Connector
    FC, SC, SMA-905

Temperature

  • Operating Temperature
    -10 to 40 Degree C
  • Storage Temperature
    -15 to 85 Degree C
