D6-6-880-10

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Egismos Technology Corporation.

The D6-6-880-10 from Egismos Technology Corporation is a Laser Diode with Wavelength 870 nm, 880 nm, 890 nm (Peak), Output Power 10 mW, Output Power 10 mW, Threshold Current 8 to 13 mA, Operating Current 20 to 26 mA. More details for D6-6-880-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    D6-6-880-10
  • Manufacturer
    Egismos Technology Corporation
  • Description

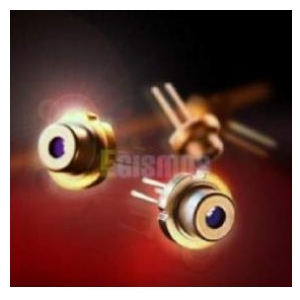

    880 nm Red Laser Diode with TO-Can Package

Applications

  • Application
    Laser Projector, Measuring equipment, Laser pointers, green lasers, blue laser DVD, laser barcode scanners, diode laser equipment, medical instruments and aerospace applications
  • Application Industry
    Aerospace, Medical, Industrial, Test & Measurement

General Parameters

  • Technology
    Multi-Quantum Well (MQW)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    870 nm, 880 nm, 890 nm (Peak)
  • Output Power
    10 mW
  • Output Power
    10 mW
  • Beam Divergence
    6 to 14 Degree (Parallel), 25 to 35 Degree (Perpendicular)
  • Beam Divergence Parallel
    6 to 14 Degree
  • Beam Divergence Perpendicular
    25 to 35 Degree
  • Laser Gain Medium
    AlGaAs
  • Threshold Current :
    8 to 13 mA
  • Reverse Voltage
    2 V
  • Operating Current
    20 to 26 mA
  • Operating Current
    20 to 26 mA
  • Operating Voltage
    1.9 to 2.3 V
  • Monitor Current
    0.1 to 0.7 mA
  • Laser Color
    Red
  • Package Type
    TO-Can
  • Package
    5.6mm TO-Can Package

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C
