FB-M1700-150HF

Laser Diode by Fibercom Ltd.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Fibercom Ltd..

The FB-M1700-150HF from Fibercom Ltd. is a Laser Diode with Wavelength 1700 nm (Peak), Output Power 0.15 W, Output Power 0.15 W, Output Power (CW) 0.15 W, Threshold Current <1 A. More details for FB-M1700-150HF can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FB-M1700-150HF
  • Manufacturer
    Fibercom Ltd.
  • Description

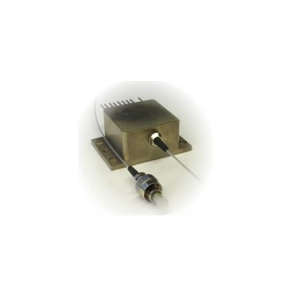

    1700 nm Multi-Mode Laser diode with HHL Pigtail package

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1700 nm (Peak)
  • Output Power
    0.15 W
  • Output Power
    0.15 W
  • Output Power (CW)
    0.15 W
  • Spectral Width (FWHM)
    <7 nm
  • Wavelength Tolerance
    ±20 nm
  • Wavelength Temp. Coefficient
    7 Å/degree
  • Threshold Current :
    <1 A
  • Operating Current
    <2 A
  • Operating Current
    <2 A
  • Reverse Voltage(PD)
    9 V
  • Operating Voltage
    1.25 V
  • Operating Current (CW)
    <2 A
  • Thermistor Resistance
    10 kOhms
  • Monitor Current
    1 to 1000 µA (PD)
  • Fiber Modes
    Multi-Mode
  • Expected Lifetime
    1 year
  • Package Type
    HHL Pigtail
  • Package
    HHL Pigtail
  • Note
    Coating diameter: 220 µm, Outer diameter: 3 µm

Physical Properties

  • Fiber core diameter
    200 µm
  • Fiber length
    1 m

Connections & Interface

  • Connector
    FC

Temperature

  • Operating Temperature
    -20 to 40 Degree C
