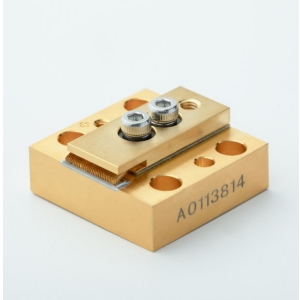

FL-HCS02-60-808

Laser Diode by Focuslight Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Focuslight Technologies.

The FL-HCS02-60-808 from Focuslight Technologies is a Laser Diode with Wavelength 808 nm (Centroid), Output Power 60 W, Output Power 60 W, Output Power (CW) 60 W, Threshold Current 10 A. More details for FL-HCS02-60-808 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FL-HCS02-60-808
  • Manufacturer
    Focuslight Technologies
  • Description
    808 nm Conduction Cooled Single Bar Diode Laser (CW)

Applications

  • Application
    Pumping, Industry, Printing, Medical, Scientific Research

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm (Centroid)
  • Output Power
    60 W
  • Output Power
    60 W
  • Output Power (CW)
    60 W
  • Spectral Width (FWHM)
    <4 to <6 nm
  • Slope Efficiency
    >1 W/A
  • Configuration
    Single Bar
  • Beam Divergence
    35 Degree (Parallel), 8 Degree (Perpendicular)
  • Beam Divergence Parallel
    35 Degree
  • Beam Divergence Perpendicular
    8 Degree
  • Wavelength Tolerance
    ±3 nm
  • Transverse Mode
    TE
  • Wavelength Temp. Coefficient
    0.28 nm/Degree C
  • Power Conversion Efficiency
    >50%
  • Threshold Current :
    10 A
  • Operating Current
    70 A
  • Operating Current
    70 A
  • Operating Voltage
    2 V
  • Operating Current (CW)
    70 A
  • Cooling Method
    Conduction-Cooled
  • Laser Class
    Class IV
  • Emitting Size/Emitter Chip
    100 µm
  • Package Type
    Bar
  • Package
    Bar
  • Stack/Array
    Single Bar

Temperature

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -40 to 55 Degree C
