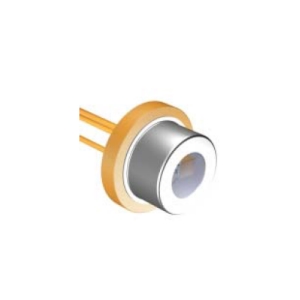

FWSL-375-150-TO18-MM

Laser Diode by Frankfurt Laser Company

Note: Your Quotation Request will be directed to Frankfurt Laser Company.

The FWSL-375-150-TO18-MM from Frankfurt Laser Company is an Ultraviolet Laser Diode that operates at a wavelength of 375 nm. It delivers a continuous wave output power of 150 mW and has a spectral width (FWHM) of 2 nm. This multimode laser diode has a beam divergence of 35 deg (perpendicular) & 15 deg (parallel) and slope efficiency of 1.3 mW/mA. It requires a threshold current of 200 mA, DC voltage of 4.5 V, and consumes 320 mA of current. This laser diode is available in a TO18 package that measures Ø5.6 mm x 20 mm and is ideal for medical laser treatment & printing applications.

Product Specifications

View similar products

Product Details

  • Part Number
    FWSL-375-150-TO18-MM
  • Manufacturer
    Frankfurt Laser Company
  • Description
    375 nm UV Laser Diode for Medical & Printing Applications

Applications

  • Application
    Medical Laser Treatment, Printing

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    375 nm
  • Output Power
    150 mW
  • Output Power
    150 mW
  • Spectral Width (FWHM)
    2 nm
  • Slope Efficiency
    1.3 mW/mA
  • Beam Divergence Parallel
    15 to 25 Degree
  • Beam Divergence Perpendicular
    35 to 45 Degree
  • Wavelength Tolerance
    ±10 nm
  • Threshold Current :
    200 to 300 mA
  • Reverse Voltage
    2 V
  • Operating Current
    320 to 400 mA
  • Operating Current
    320 to 400 mA
  • Operating Voltage
    4.5 to 6 V
  • Laser Color
    Ultraviolet
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can
  • Package
    TO18 (5.6 mm)

Temperature

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -40 to 85 Degree C
