DFB-0855-050-BFY

Laser Diode by Idealphotonics Inc

Note: Your Quotation Request will be directed to Idealphotonics Inc.

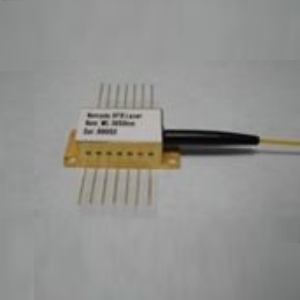

The DFB-0855-050-BFY from Idealphotonics Inc is a GaAsP/AlGaAs Distributed Feedback Laser Diode that operates at a center wavelength of 855 nm. It delivers a maximum output power of 50 mW and has a slope efficiency of 0.25 mW/mA. This TE (transverse electric) polarized laser diode has a spectral width of 2 MHz, laser current coefficient of 0.003 nm/mA, and mod-hop free tunability of 50 mW. It requires a maximum threshold current of 70 mA and consumes 230 mA of current. This laser diode has an integrated photodiode and a Peltier cooler. It has a single-mode polarization maintaining optical fiber that supports FC/APC connectors and is RoHS complaint. This laser diode is available in a 14-pin butterfly package and is ideal for THz spectroscopy applications.

Product Specifications

View similar products

Product Details

  • Part Number
    DFB-0855-050-BFY
  • Manufacturer
    Idealphotonics Inc
  • Description
    855 nm GaAsP/AlGaAs DFB Laser Diode for THz Spectroscopy Applications

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    854 to 856 nm
  • Output Power
    0.05 W
  • Output Power (CW)
    0.05 W
  • Spectral Width (FWHM)
    2 MHz
  • Slope Efficiency
    0.2 to 0.3 mW/mA
  • Threshold Current :
    70 mA
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can, Butterfly
  • Package
    14-Pin

Physical Properties

  • RoHS
    Yes

Connections & Interface

  • Connector
    FC

Technical Documents
