BA-10XX-400-UM-11W-YY

Laser Diode by Innolume
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The BA-10XX-400-UM-11W-YY from Innolume is a Laser Diode with Wavelength 1010 nm, 1130 nm, Output Power 11 W, Output Power 11 W, Output Power (CW) 11 W, Threshold Current 0.9 to 1.3 A. More details for BA-10XX-400-UM-11W-YY can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BA-10XX-400-UM-11W-YY
  • Manufacturer
    Innolume
  • Description

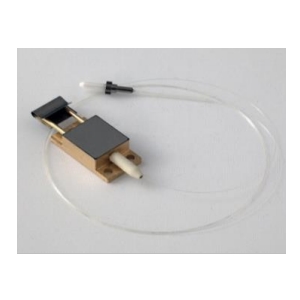

    1010 nm, 1130 nm High Power Diode Laser on open heatsink

Applications

  • Application
    Medical, industrial
  • Application Industry
    Medical, Industrial

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1010 nm, 1130 nm
  • Output Power
    11 W
  • Output Power
    11 W
  • Output Power (CW)
    11 W
  • Spectral Width (FWHM)
    4 to 8 nm
  • Wavelength Tolerance
    ±10 nm
  • Wavelength Temp. Coefficient
    0.3 to 0.4 nm/Degree C
  • Threshold Current :
    0.9 to 1.3 A
  • Forward Voltage
    1.45 to 1.6 V
  • Reverse Voltage
    1 V
  • Operating Current
    14.5 to 16.5 A
  • Operating Current
    14.5 to 16.5 A
  • Operating Voltage
    1.45 to 1.6 V
  • Operating Current (CW)
    14.5 to 16.5 A
  • Laser Color
    Infrared
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    200 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    2-pin Fiber-Coupled package

Physical Properties

  • Fiber core diameter
    400 µm
  • Fiber length
    1.0 ± 0.1 m
  • RoHS
    Yes

Connections & Interface

  • Connector
    SNZ-3A, SMA905

Temperature

  • Operating Temperature
    15 to 60 Degree C
  • Storage Temperature
    5 to 80 Degree C
