SM-1085-TO-400

Laser Diode by Innolume
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The SM-1085-TO-400 from Innolume is a Laser Diode with Wavelength 1075 nm, 1080 nm, 1085 nm, (Mean), Output Power 400 mW, Output Power 400 mW, Output Power (CW) 400 mW, Threshold Current 40 to 80. More details for SM-1085-TO-400 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SM-1085-TO-400
  • Manufacturer
    Innolume
  • Description

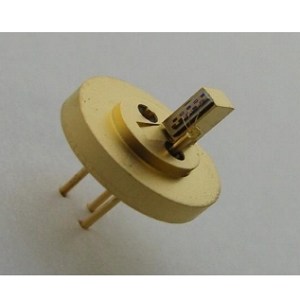

    High Power Single Mode Laser Diode in 9mm TO-can header

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1075 nm, 1080 nm, 1085 nm, (Mean)
  • Output Power
    400 mW
  • Output Power
    400 mW
  • Output Power (CW)
    400 mW
  • Spectral Width (FWHM)
    0.6 to 3 nm
  • Beam Divergence
    30 to 40 Degree (Parallel), 4 to 9 Degree (Perpendicular)
  • Beam Divergence Parallel
    30 to 40 Degree
  • Beam Divergence Perpendicular
    4 to 9 Degree
  • Transverse Mode
    TE
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Threshold Current :
    40 to 80
  • Forward Voltage
    1.6 to 1.8 V
  • Reverse Voltage
    2 V
  • Operating Current
    0.5 to 0.55 A
  • Operating Current
    500 to 550 mA
  • Operating Voltage
    1.6 to 1.8 V
  • Operating Current (CW)
    500 to 550 mA
  • Laser Color
    Infrared
  • Emitting Area
    3 x 1 µm (Aperture size)
  • Fiber Modes
    Single Mode
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    TO-Can
  • Package
    TO-Can (9 mm)

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    5 to 60 Degree C
  • Storage Temperature
    -45 to 85 Degree C
